For version 2.3.1 of the 3DS Specification, it is possible to automate the switching from the 3DS Requestor App to the OOB Authentication App. This flow is also possible with version 2.2 of the 3DS Specification if the Bridging Message Extension with the Challenge Data object is present and supported by the ACS and the 3DS SDK.

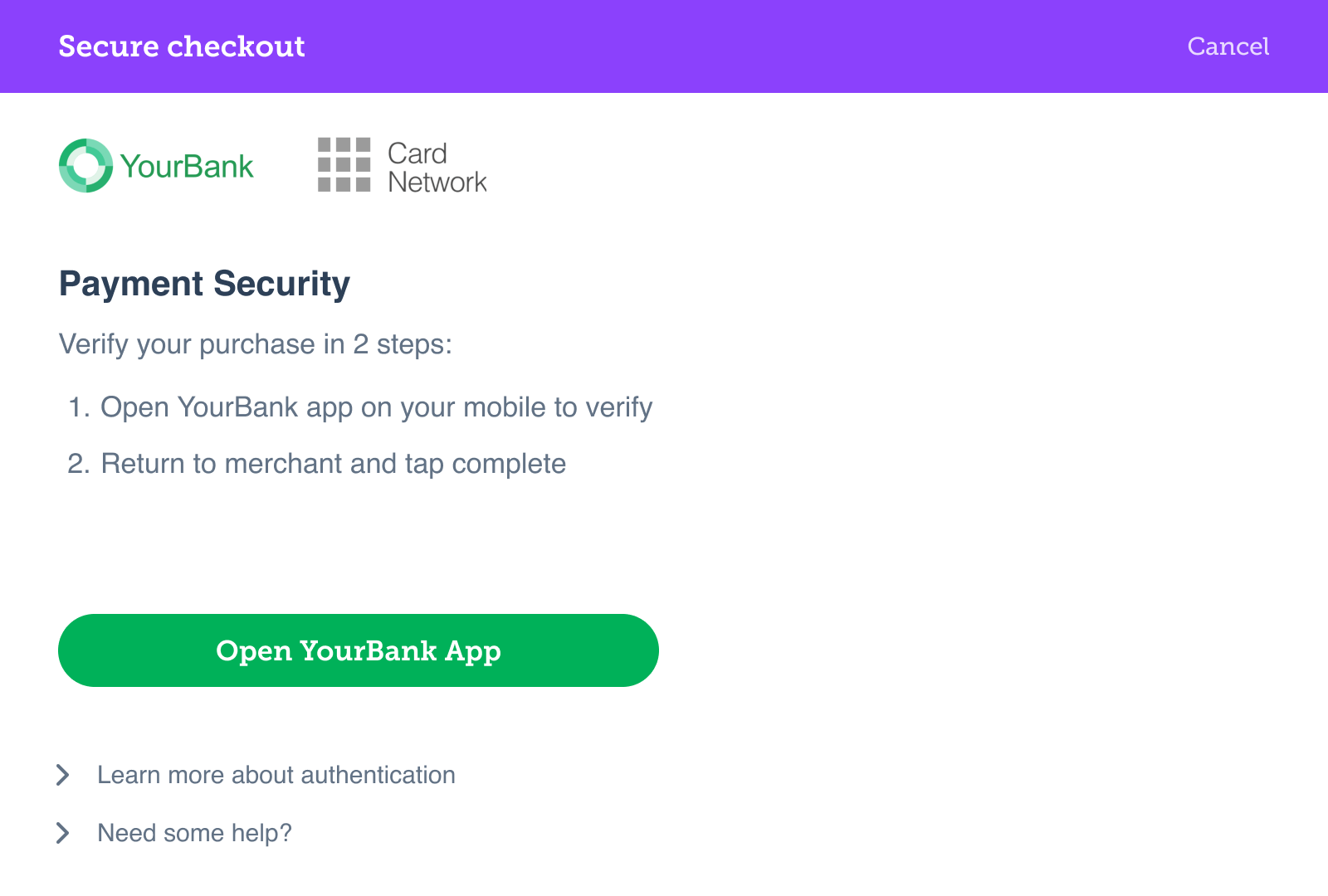

During the challenge, the ACS instructs the Cardholder to switch from the payment/checkout page to the Authentication App using the provided button on the screen. When the Cardholder has completed the authentication, the OOB Authentication App will automatically return the Cardholder to the Challenge screen on the 3DS Requestor App.
Refer to OOB Flow App Channel – Automatic Switching to the 3DS Requestor App for details on automatic switching from the OOB Authentication App to the 3DS Requestor App.

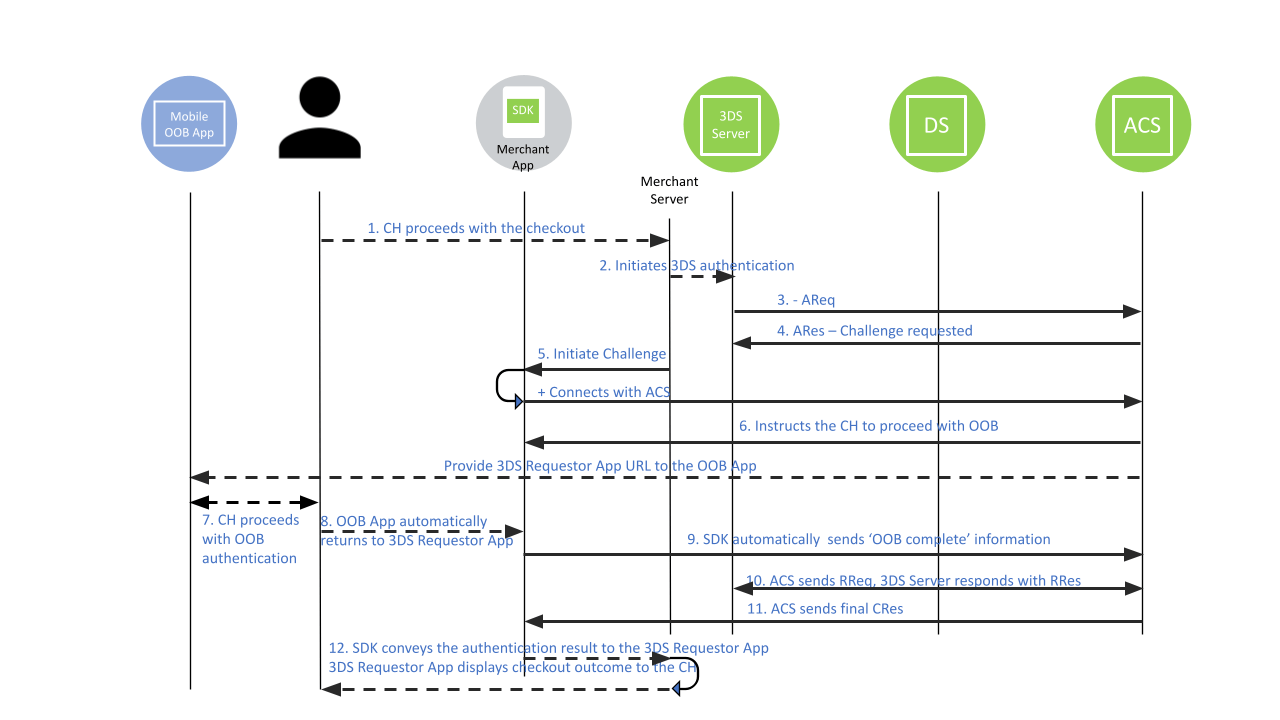

The ACS has defined, deployed, and communicated an OOB authentication process to the Cardholder.
The ACS provides the OOB App URL to the 3DS SDK.
The OOB Authentication App can handle the 3DS Requestor App URL.
The 3DS Requestor provides the 3DS Requestor App URL to the 3DS SDK.
The 3DS Requestor App and the OOB Authentication App are on the same device.
The 3DS SDK and ACS communicate via the 3DS Requestor App URL Indicator and OOB App URL Indicator that they support the URLs for automatic switching.

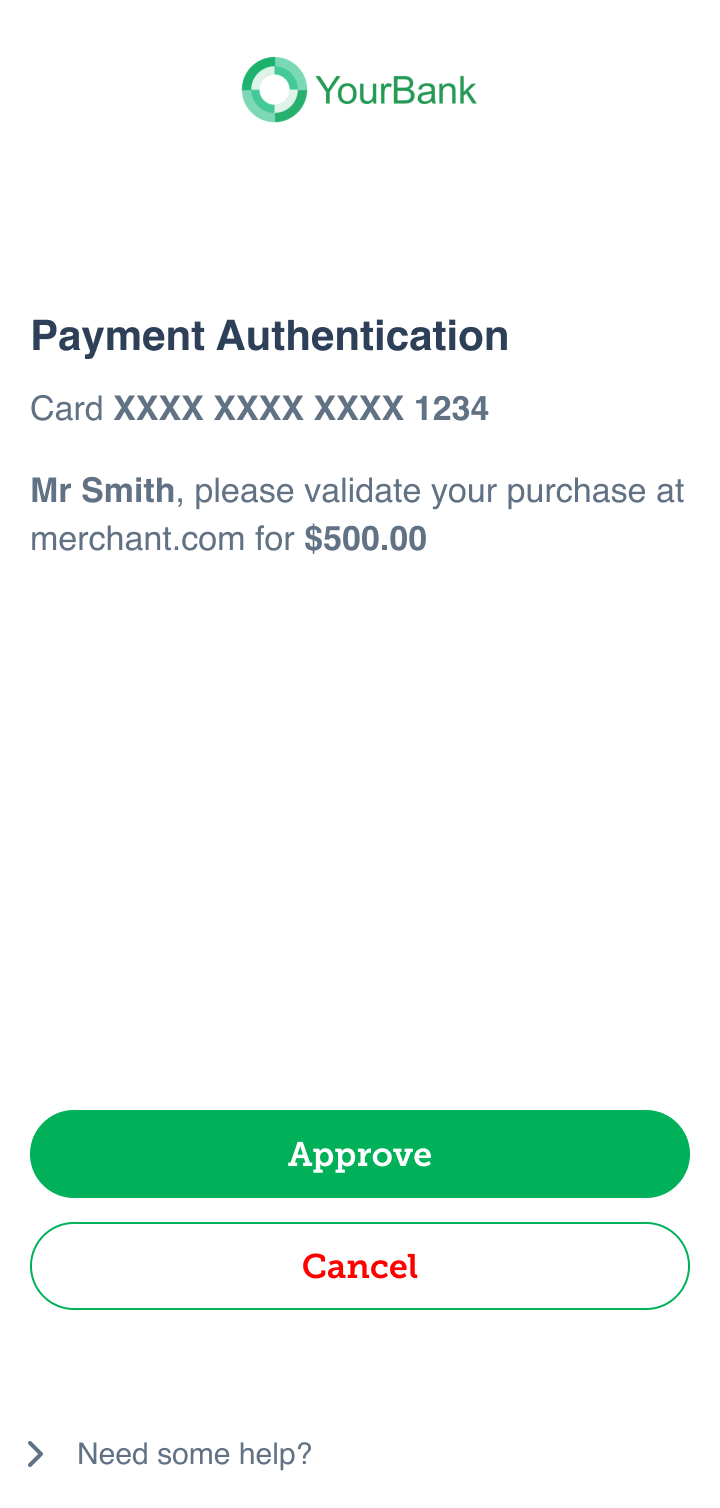

The Cardholder authenticates the transaction using an OOB Authentication App that is on the Device used for the purchase. The switching between the 3DS Requestor and the OOB Authentication App is automated.

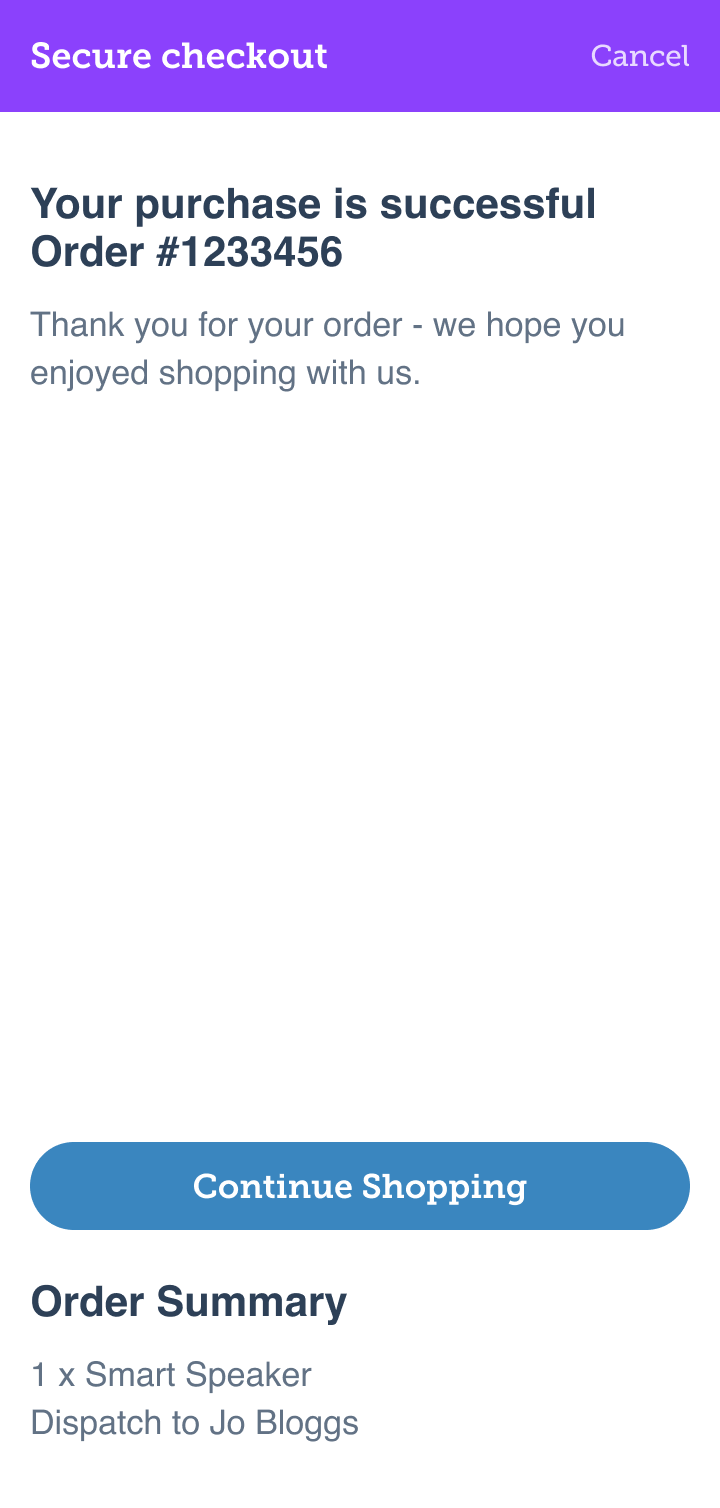

The ACS sends a Final CRes message to the 3DS SDK, the 3DS SDK conveys the information to the 3DS Requestor App.
Note: After Step 9, the ACS may continue the challenge if the OOB authentication was not performed or failed, OR send the Final CRes message as shown.
Note: If the ACS receives or knows the result of the OOB authentication (pass or fail) before the Cardholder confirms completion, it may send the RReq before receiving the “OOB complete” information from the 3DS SDK.

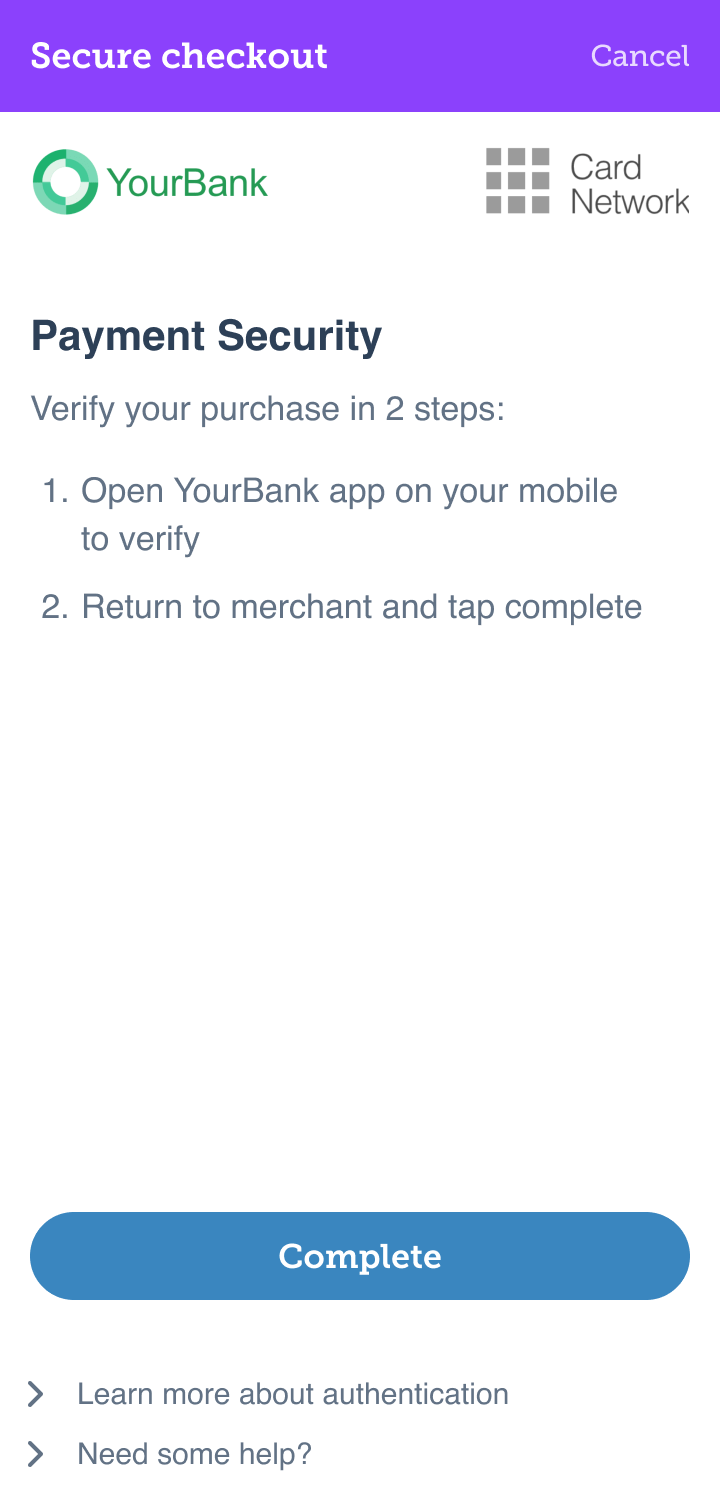

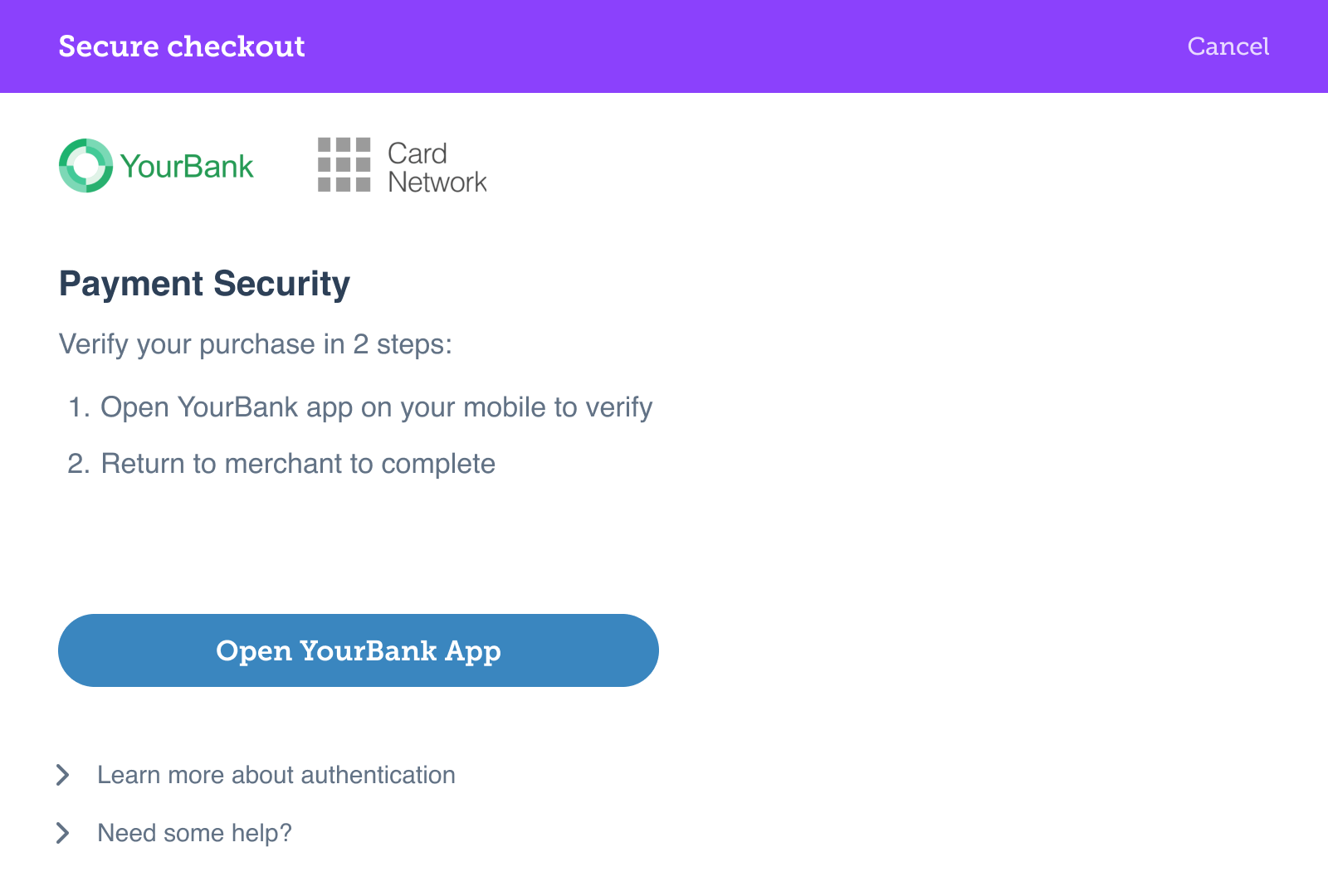

Note: It is recommended for the ACS to display the “Complete” button (refer to the OOB Continuation Label) if the OOB Authentication App is on a different device or if there is a technical issue when the 3DS Requestor App URL and OOB App URL are invoked.
Note: After Step 4, the ACS may continue the challenge if the OOB authentication was not performed or if it failed, OR send the Final CRes message as shown.

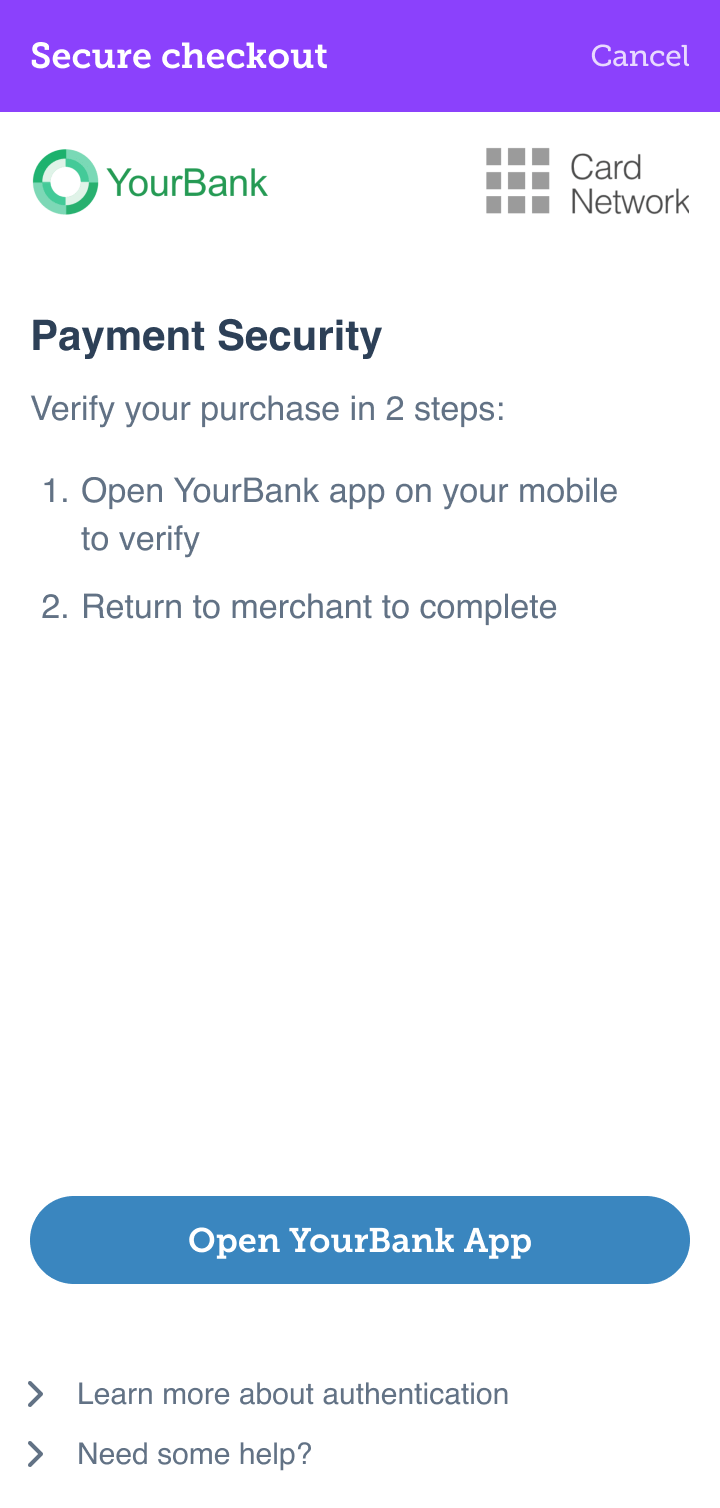

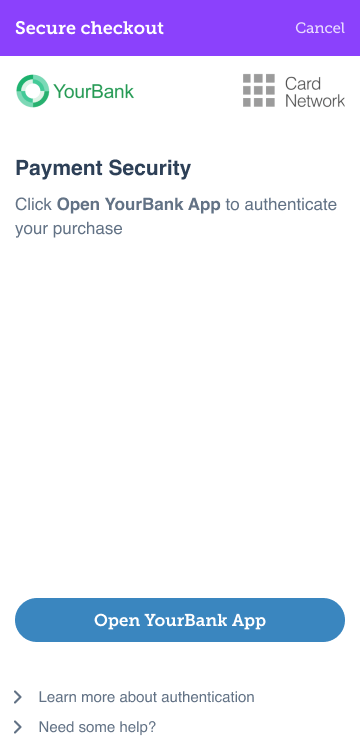

The Cardholder selects the “Open yourbank app” button.

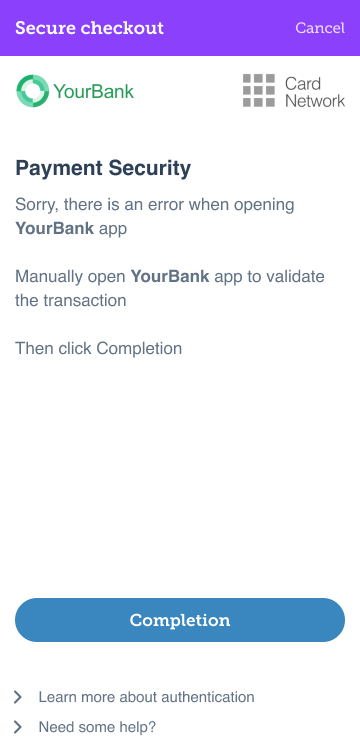

The 3DS SDK invokes the OOB App URL (Universal App Link), but the Device Operating System cannot resolve the URL and opens the default Device Browser.

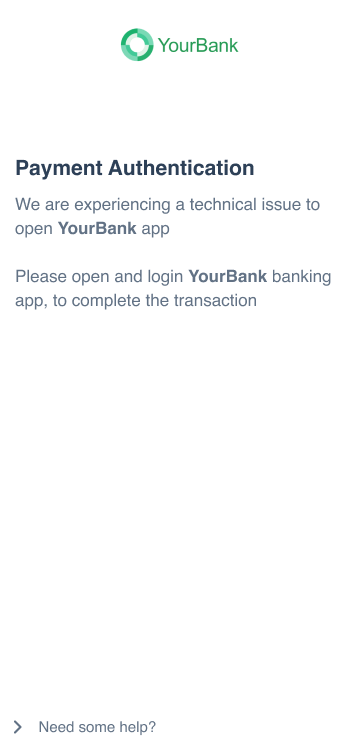

Note: The ACS would need to provide a landing page to instruct the Cardholder to manually switch to the OOB Authentication App.
Note: The ACS may also display the “Complete” button if the OOB Authentication App is on a different device.

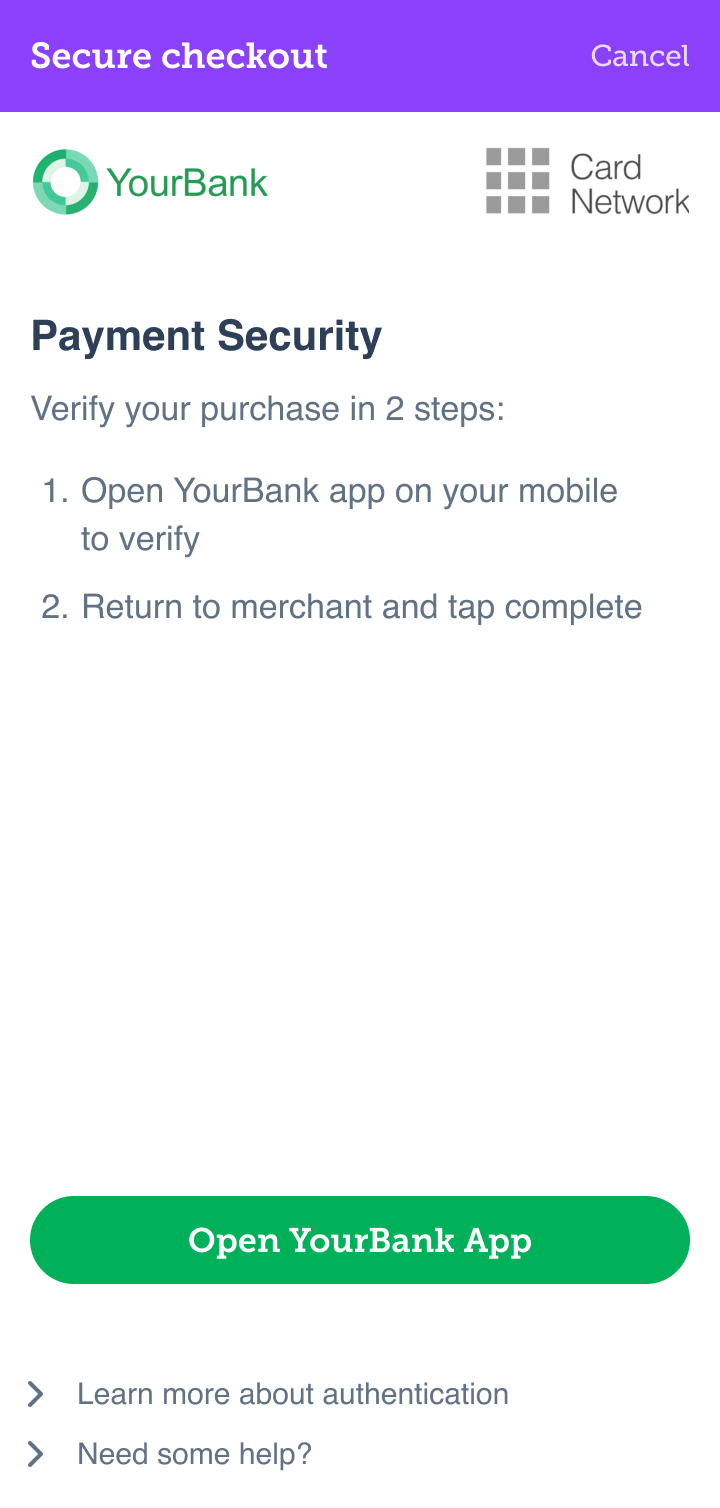

Note: The ACS should display the “Complete” button if the OOB Authentication App is on a different device.
Table 3.4: 3DS Data Elements Related to OOB – Automatic Switching to and from the OOB App
Data Element | Description | Version |
---|---|---|
3DS Requestor App URL | 3DS Requestor App declaring its URL within the CReq message so that the Authentication App can call the 3DS Requestor App after OOB authentication has occurred. Each transaction would require a unique Transaction ID by using the SDK Transaction ID. | 2.3.1 |
3DS Requestor App URL Indicator | Indicates whether the OOB Authentication App used by the ACS during a challenge supports the 3DS Requestor App URL. | 2.3.1 |
ACS Interface | The ACS interface that the challenge presents to the Cardholder. | 2.3.1 |
ACS UI Template | Identifies the UI Template format that the ACS first presents to the Cardholder. | 2.3.1 |
ACS UI Type | User interface type that the 3DS SDK will render, which includes the specific data mapping and requirements. | 2.3.1 |
Authentication Method | Authentication approach that the ACS used to authenticate the Cardholder for this specific transaction. | 2.3.1 |
OOB App Label | Label to be displayed for the link to the OOB App URL. |
2.3.1 2.2 + Bridging Message Extension |
OOB App Status | Status code indicating the type of problem encountered when using the OOB App URL (fail to open). | 2.3.1 2.2 + Bridging Message Extension |
OOB App URL | Universal App Link to an Authentication App used in the OOB authentication. The OOB App URL will open the appropriate location within the OOB Authentication App. | 2.3.1 2.2 + Bridging Message Extension |
OOB App URL Indicator | Indicates if the 3DS SDK supports the OOB App URL. | 2.3.1 2.2 + Bridging Message Extension |
OOB Continuation Indicator | Indicator notifying the ACS that the Cardholder has selected the OOB Continuation button in an OOB authentication method, or that the 3DS SDK automatically completes without any Cardholder interaction. | 2.3.1 2.2 + Bridging Message Extension |
OOB Continuation Label | Label to be used in the UI for the button that the Cardholder selects when they have completed the OOB authentication. | 2.3.1 |
SDK Authentication Type | Authentication methods preferred by the 3DS SDK in order of preference. | 2.3.1 |
SDK UI Type | Lists all UI types that the device supports for displaying specific challenge user interfaces within the 3DS SDK. | 2.3.1 |
